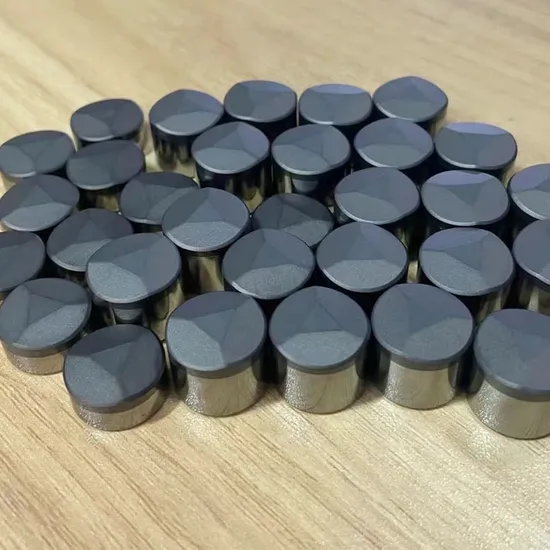

Spherical PDC Inserts and PDC Cutter Conical Shaped PDC

Spherical PDC Inserts and PDC Cutter Conical Shaped PDC

REETEC DIAMOND INSERTS SPECIFICATIONPDC Inserts are evaluated for their metallurgical features by microscopic examinatio

Send your inquiry

DESCRIPTION

Basic Info
Use Coal Mining, Mining, Oilfield Drilling
Machine Type Drilling Tool
Processing Type Forging
Size Standard and Customize Size
HS Code 82071910
Production Capacity 250000PCS/Year
Product Description
  • Usages: mainly for roller bit for DTH drill bit, Tricone roller bits, Button bits, coal mining picks for oilfield drilling, coal mining, geological exploration, etc.
  • Diameter: 8mm to 25mm, total height is from 4mm and 25mm
  • Types: standard, conical, parabolic, ballistic, etc.
  • Tolerance: +/-0.01mm
  • Physical performance: high hardness and impact toughness, very good mechanical & chemical stability

REETEC DIAMOND INSERTS SPECIFICATIONPDC Inserts are evaluated for their metallurgical features by microscopic examination of the section:1) the working layer integrity 2) the bonding between the working layer and the transition layer3) the interface integrity between transition layer and the carbide substrate
Chisel (Conical) PDC Inserts Specification
Poduct CodeD(φ)H(H)Dome Height(SH)
E06805.0±0.015.72±0.131.62±0.25×45°±1°
E15296.421±0.015.8±0.131.41±0.25×45°±1°
E0411 6.35±0.132.0±0.25
E06798.009±0.0110.35±0.133.2±0.13
E0349 7.14±0.132.14±0.25
E01069.596±0.0110.83±0.133.24±0.25
E0312 11.13±0.133.24±0.25
E0383 11.13±0.134.75±0.25
The Diameter, Height, and the Carbide Chamfer Machined to Customer Specifications

Domed PDC Inserts Specification
Poduct CodeD(φ)H(H)Dome Height(SH)
D1016.4215.81.41
D10210.06123.91
D2021217.52.82
D30113.0616.915.53
D40514.0722.54.90
D80219.0924.17.19
D90222.0348.23
D90725.35349.47
The Diameter, Height, and the Carbide Chamfer Machined to Customer Specifications

Parabolic (Ballistic) PDC Inserts Specification
Poduct CodeD(φ)H(H)Dome Height(SH)srSR
D30413.0619.86.89123.50
D80319.14349.973.9919.4
D90422.00239.975.0022.00
Cubic Presses:
QUALITY CONTROL AND IMPACT TESTINGInserts are manufactured under strict guideline where all high pressure and high temperature components, raw materials for inserts are regulated. All batches of inserts are checked for the following (Each batch products, we sample 10% to make wear resistance test.)
  1. Dye penetration to check presence of cracks
  2. Thermal stability test
  3. Drop weight test and
  4. Impact Fatigue where inserts are subjected to impact rate of 20 hits per minute using 5 Ton machine
Packaging & DeliveryPackaging DetailsPlastic box, 50 pieces/box. Carton outside.Delivery TimeWithin one working week after receiving your payment
